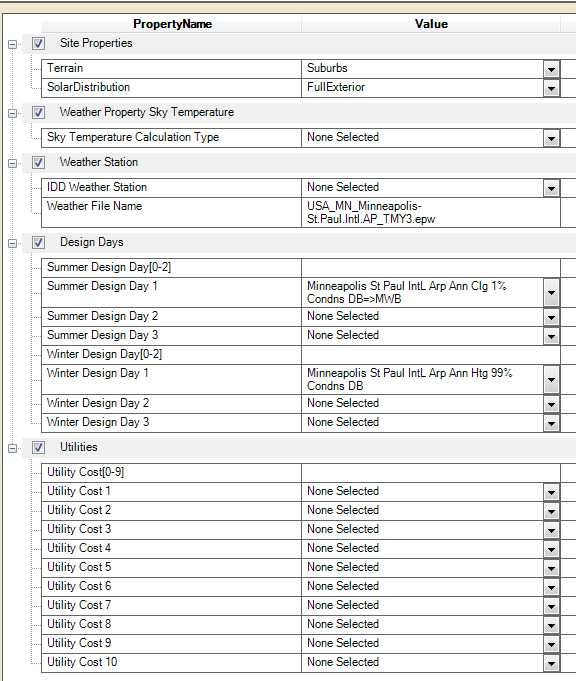

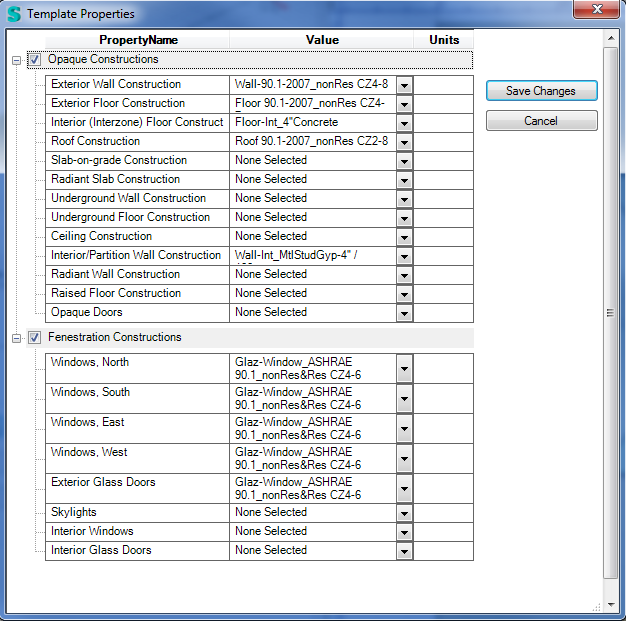

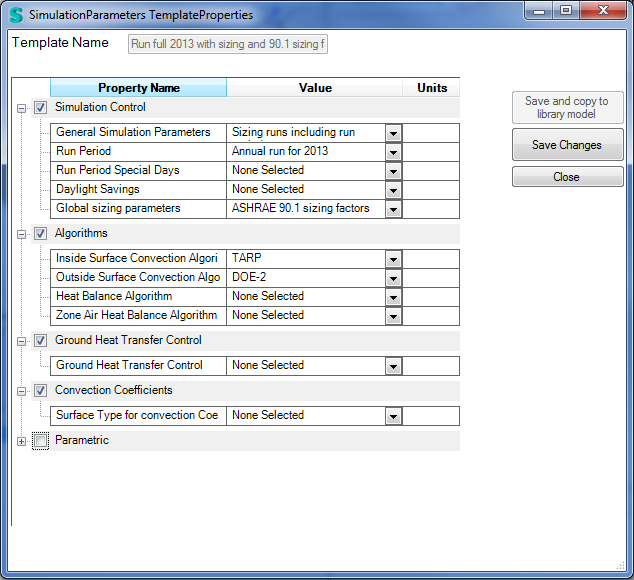

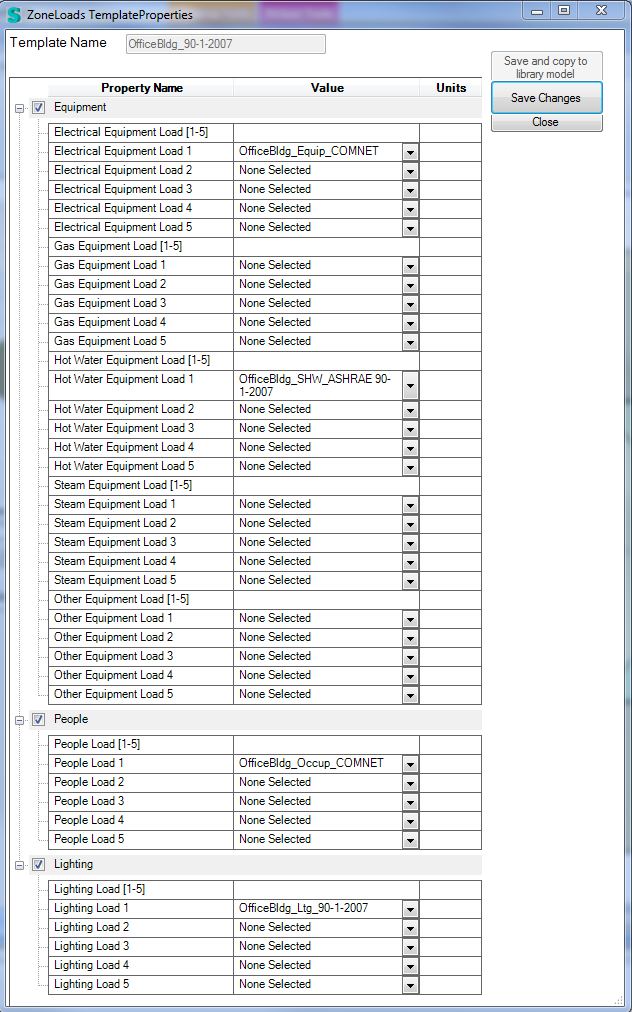

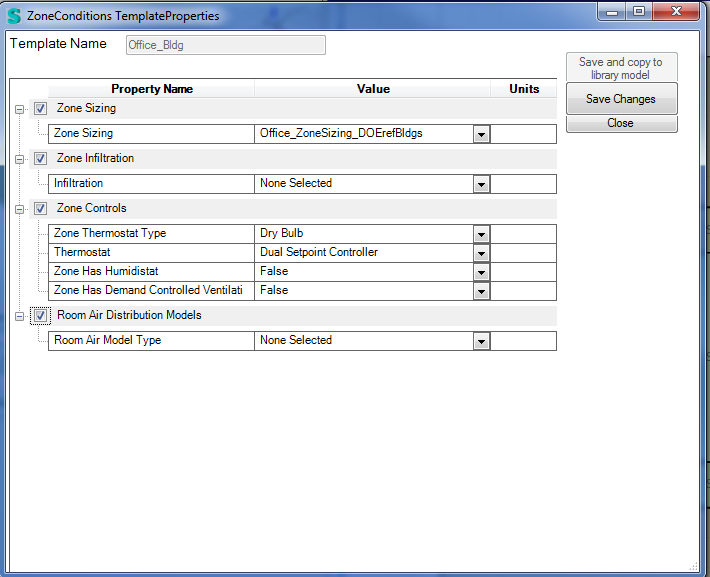

The following identifies the different templates that have been included with ASHRAE Baseline System 7 Sample File.
Note: To access this Template the Source Library needs to be changed to Project Model.
A Zone HVAC Group with a Variable Air Volume air terminal with hot water reheat that is temperature controlled.
A Variable Air Volume Air Loop with chilled water cooling coils and hot water heating coils.
Two electric vapor compression chillers that are driven by two variable speed drive headered pumps.
Two, two speed Cooling Towers that are driven by two constant speed drive headered pumps.
Two hot water boilers that are driven by two variable speed drive headered pumps.
