ASHRAE System 7 Libraries

The following provides a property level image for each of the library entries  that have been included with ASHRAE Baseline System 7 Sample File.

Locations

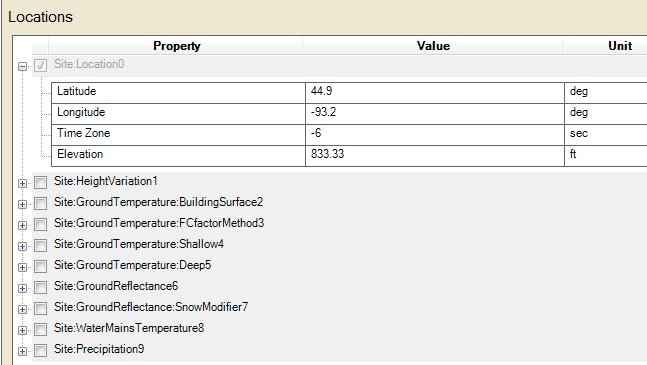

USA_MN_Minneapolis St Paul IntL Arp

Workspace = Libraries>Locations

Type = Location

Sub Type = Default

Note: To access this Library Entry the Source Library needs to be changed to Project Model.

Weather

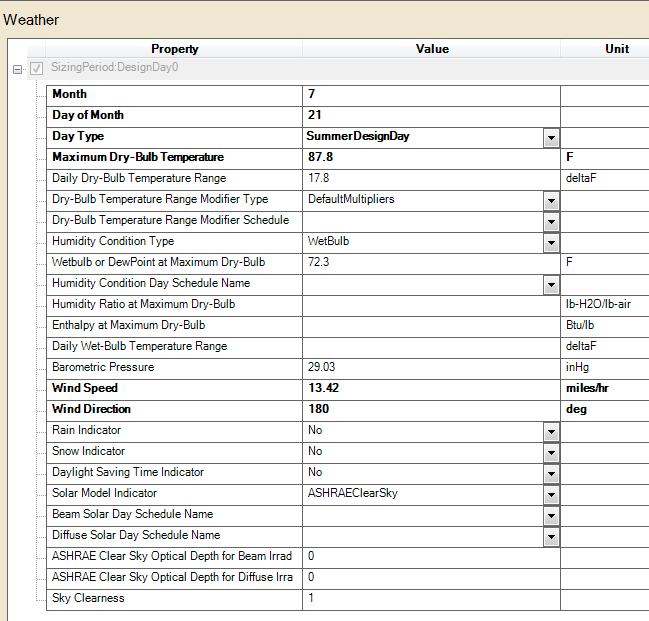

Minneapolis St Paul IntL Arp Ann Clg 1% Condns DB=>MWB

Workspace = Libraries>Weather

Type = Design Day

Sub Type = Default

Note: To access this Library Entry the Source Library needs to be changed to Project Model.

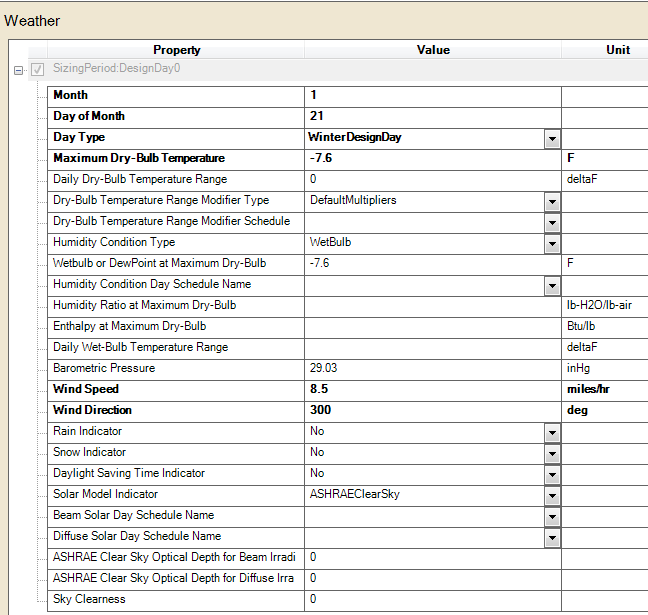

Minneapolis St Paul IntL Arp Ann Htg 99% Condns DB

Workspace = Libraries>Weather

Type = Design Day

Sub Type = Default

Note: To access this Library Entry the Source Library needs to be changed to Project Model.

Mat'l/Glaz Layer Sets

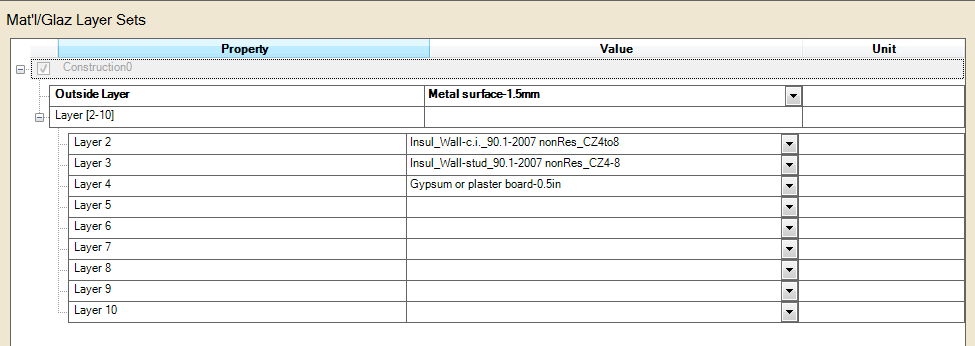

Wall-90.1-2007_nonRes CZ4-8

Workspace = Libraries>Mat'l/Glaz Layer Sets

Type = OpaqueLayerSet

Sub Type = Default

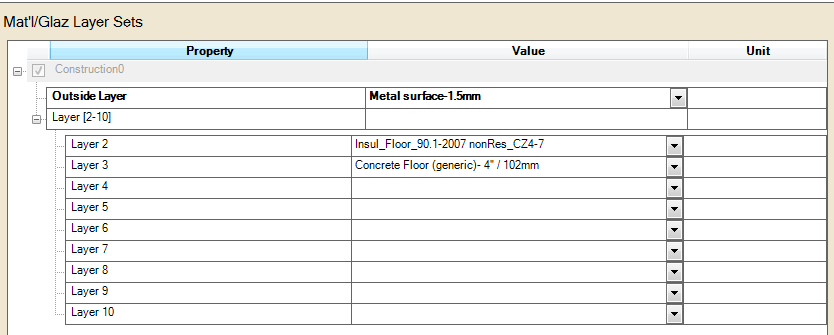

Floor 90.1-2007_nonRes CZ4-7

Workspace = Libraries>Mat'l/Glaz Layer Sets

Type = OpaqueLayerSet

Sub Type = Default

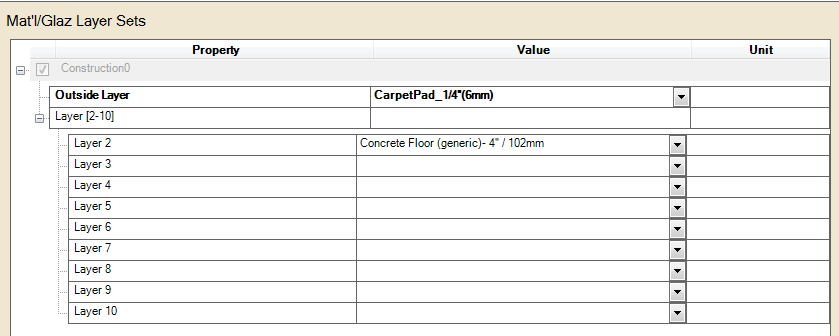

Floor-Int_4"Concrete

Workspace = Libraries>Mat'l/Glaz Layer Sets

Type = OpaqueLayerSet

Sub Type = Default

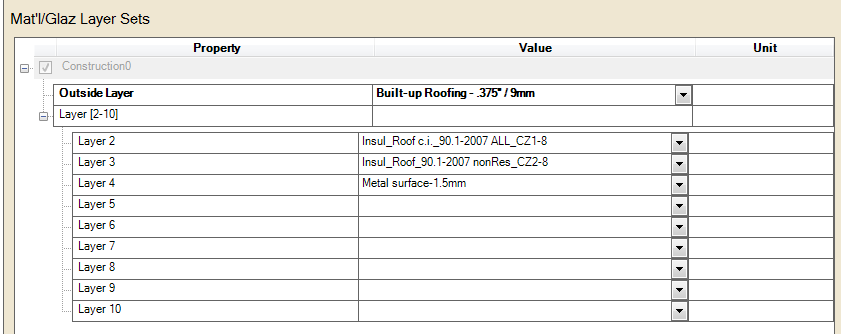

Roof 90.1-2007_nonRes CZ2-8

Workspace = Libraries>Mat'l/Glaz Layer Sets

Type = OpaqueLayerSet

Sub Type = Default

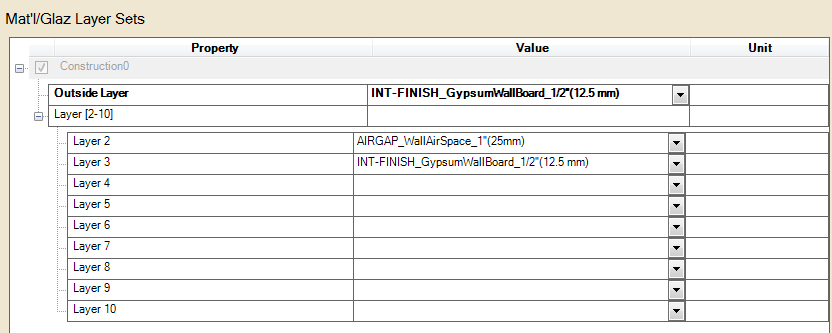

Wall-Int_MtlStudGyp-4" / 100mm

Workspace = Libraries>Mat'l/Glaz Layer Sets

Type = OpaqueLayerSet

Sub Type = Default

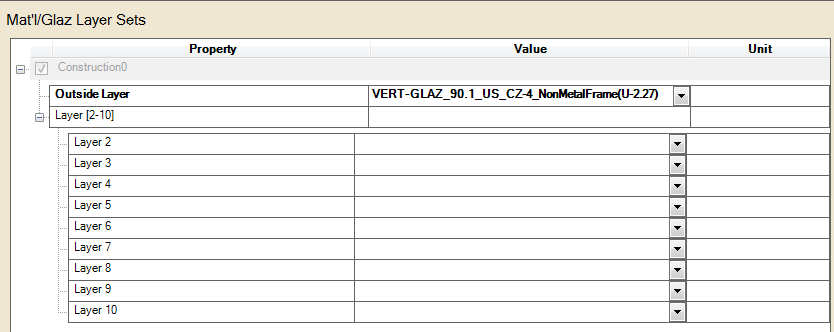

Glaz-Window_ASHRAE 90.1_nonRes&Res CZ4-6

Workspace = Libraries>Mat'l/Glaz Layer Sets

Type = GlazLayerSet

Sub Type = Default

Mat'l/Glaz Layers

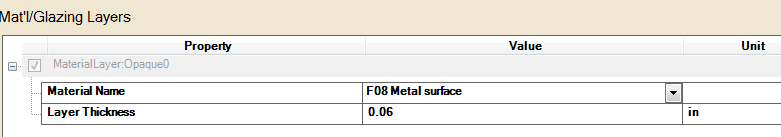

Metal surface-1.5mm

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

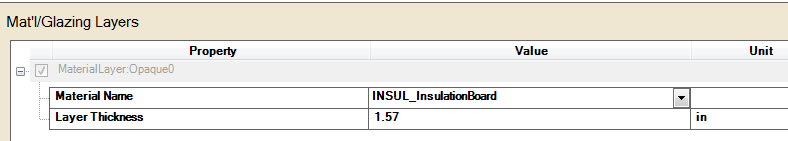

Insul_Wall-ci_90.1-2007 nonRes_CZ4to8

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

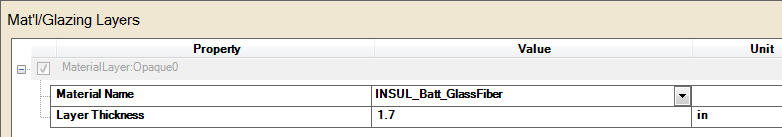

Insul_Wall-stud_90.1-2007 nonRes_CZ4-8

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

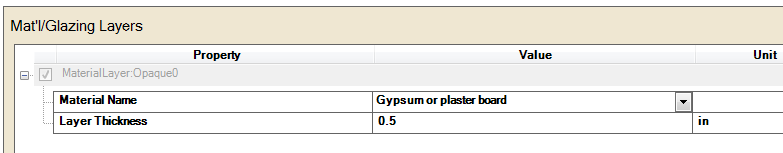

Gypsum or plaster board-0.5in

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

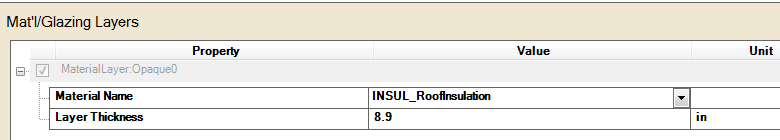

Insul_Floor_90.1-2007 nonRes_CZ4-7

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

Concrete Floor (generic)- 4" / 102mm

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

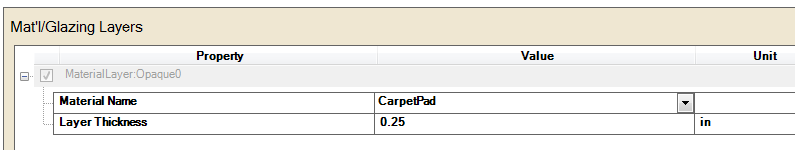

CarpetPad_1/4"(6mm)

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

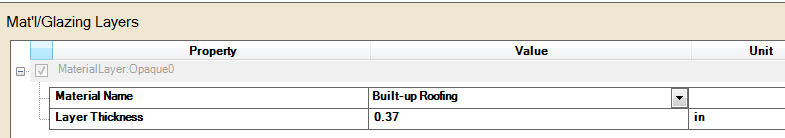

Built-up Roofing - .375" / 9mm

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

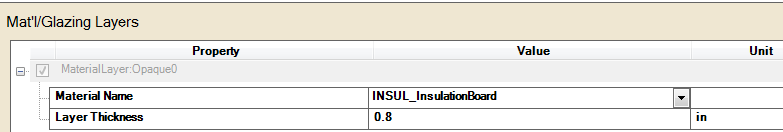

Insul_Roof c.i._90.1-2007 ALL_CZ1-8

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

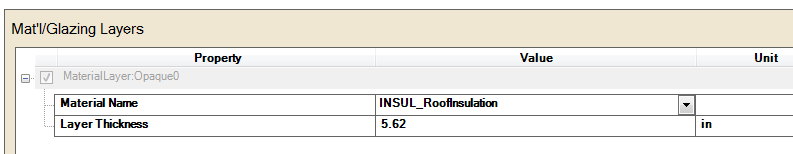

Insul_Roof_90.1-2007 nonRes_CZ2-8

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

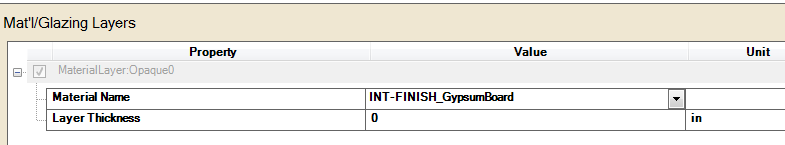

INT-FINISH_GypsumWallBoard_1/2"(12.5 mm)

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

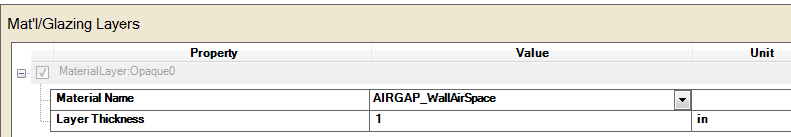

AIRGAP_WallAirSpace_1"(25mm)

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material Layer

Sub Type = Default

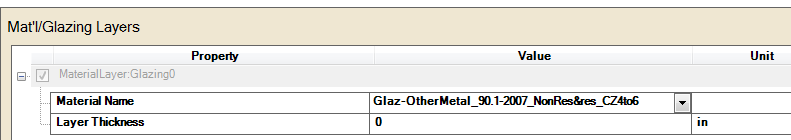

VERT-GLAZ_90.1_US_CZ-4_NonMetalFrame(U-2.27)

Workspace = Libraries>Mat'l/Glazing Layers (back to Mat'l/Glazing Layer Sets)

Type = Glazing Material Layer

Sub Type = Default

Materials

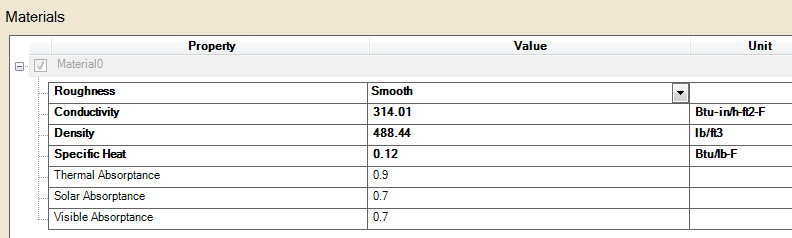

F08 Metal surface

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = Default

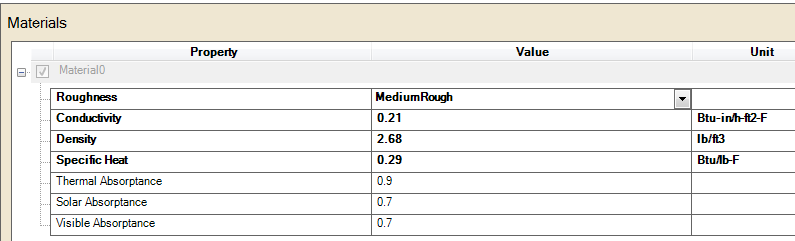

INSUL_InsulationBoard

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = Default

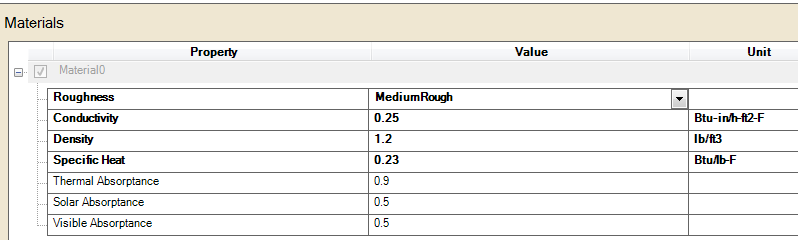

INSUL_Batt_GlassFiber

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = Default

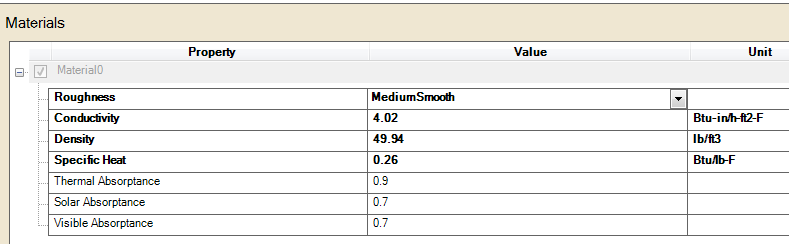

Gypsum or plaster board

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = Default

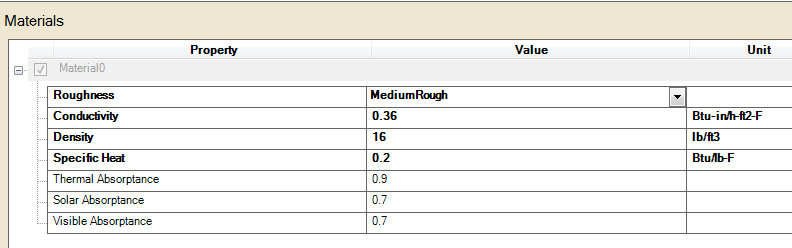

INSUL_RoofInsulation

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = Default

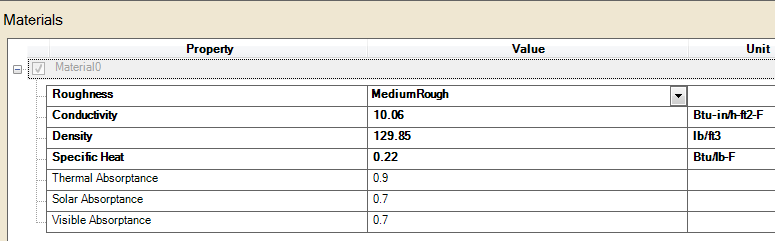

Concrete (generic)

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = Default

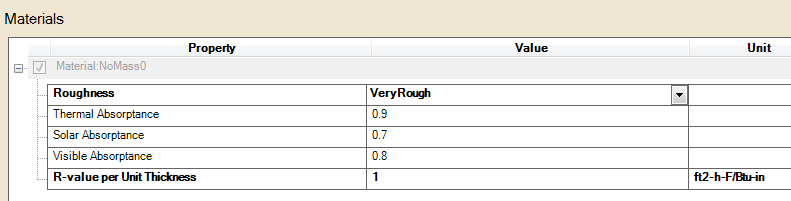

Carpet Pad

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = No Mass

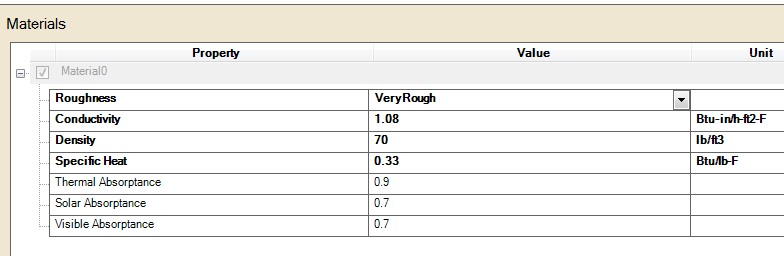

Built-up Roofing

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = Default

INSUL_InsulationBoard

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = Default

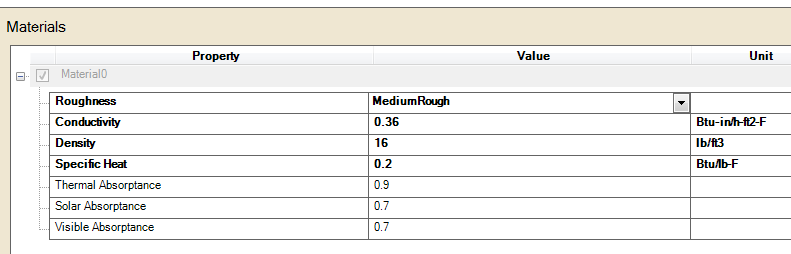

INSUL_RoofInsulation

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = Default

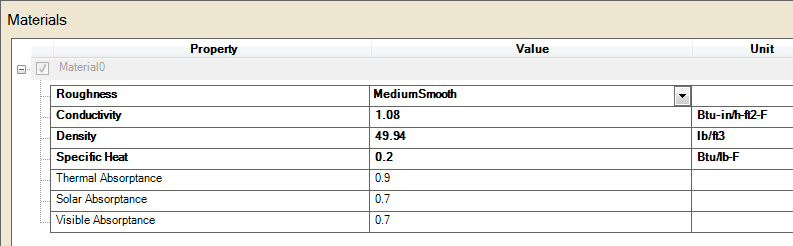

INT-FINISH_GypsumBoard

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = Default

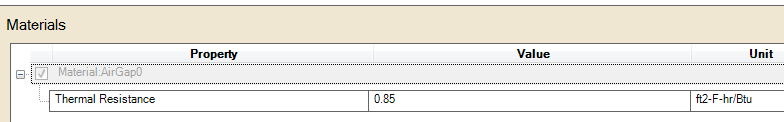

AIRGAP_WallAirSpace

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = AirGap

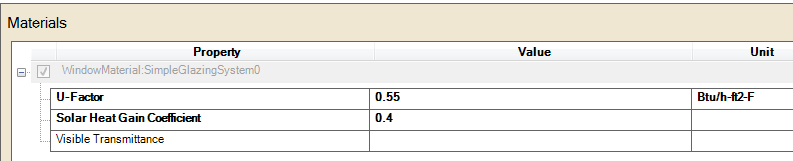

Glaz-OtherMetal_90.1-2007_NonRes&res_CZ4to6

Workspace = Libraries>Materials (back to Mat'l/Glazing Layer Sets)

Type = Opaque Material

Sub Type = AirGap

Internal Loads

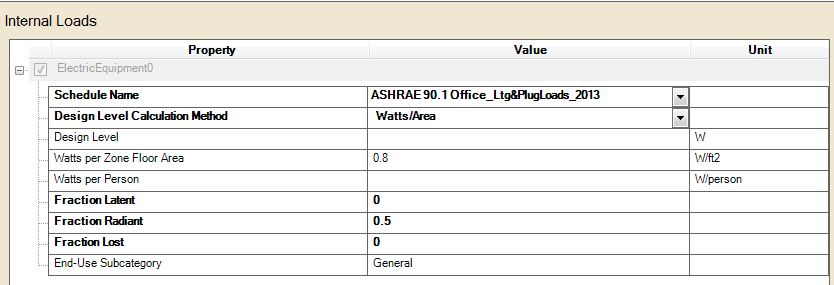

OfficeBldg_Equip_COMNET

Workspace = Libraries>Internal Loads

Type = Equipment

Sub Type = Electric

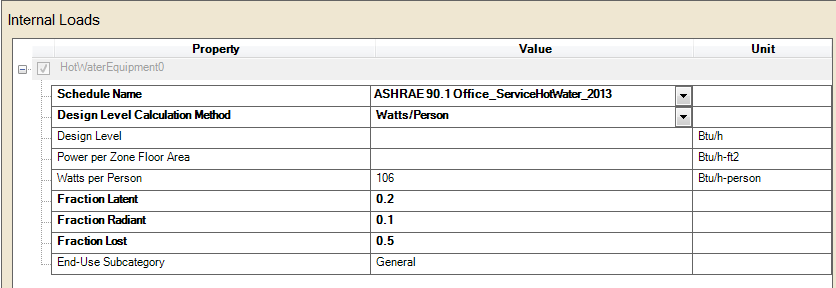

OfficeBldg_SHW_ASHRAE 90-1-2007

Workspace = Libraries>Internal Loads

Type = Equipment

Sub Type = Hot Water

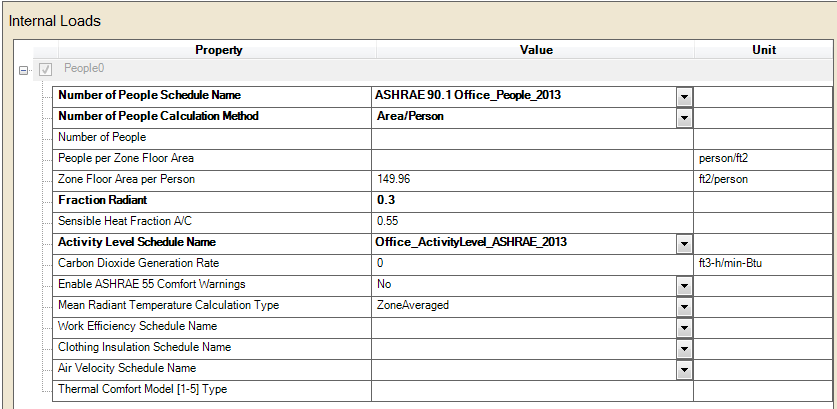

OfficeBldg_Occup_COMNET

Workspace = Libraries>Internal Loads

Type = People

Sub Type = Default

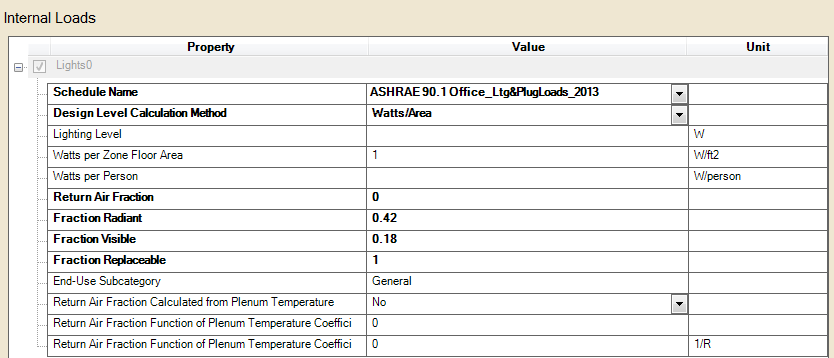

OfficeBldg_Ltg_90-1-2007

Workspace = Libraries>Internal Loads

Type = Lights

Sub Type = Default

Sizing Params

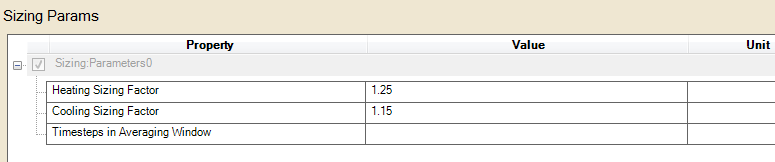

ASHRAE 90.1 sizing factors

Workspace = Libraries>Sim Params

Type = Simulation Control

Sub Type = Default

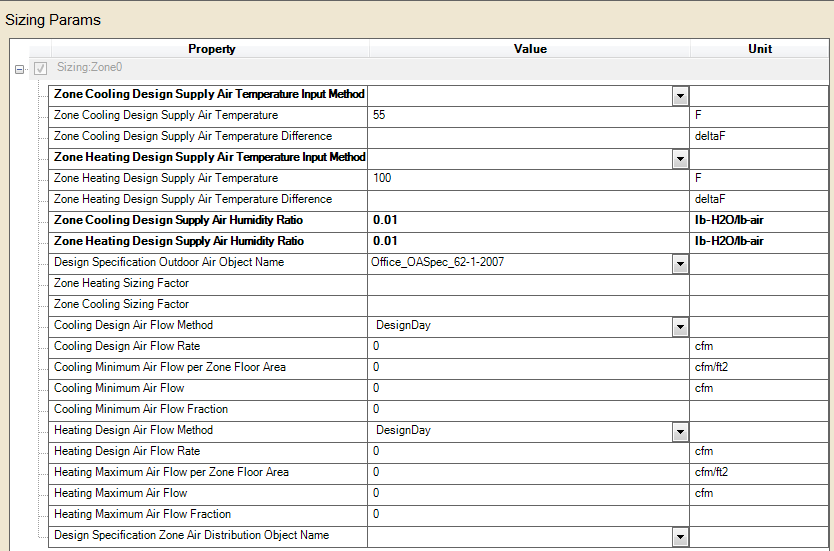

Office_ZoneSizing_DOErefBldgs

Workspace = Libraries>Sizing Params

Type = HVAC Design

Sub Type = ZoneSizing

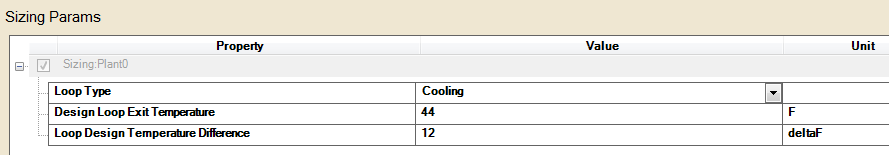

CHWS-44F_dT-12F

Workspace = Libraries>Sizing Params

Type = HVAC Design

Sub Type = Water Loop Sizing

EnergyPlus Object = SizingPlant

CWS-85F_dT-10F

Workspace = Libraries>Sizing Params

Type = HVAC Design

Sub Type = Water Loop Sizing

EnergyPlus Object = SizingPlant

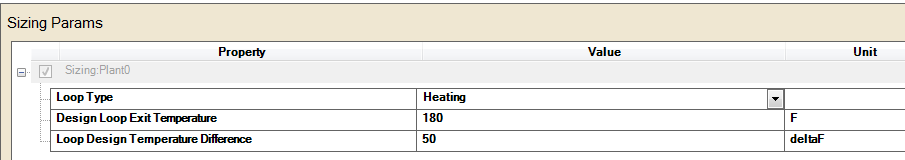

HWS-180F_dT-50F

Workspace = Libraries>Sizing Params

Type = HVAC Design

Sub Type = Water Loop Sizing

EnergyPlus Object = SizingPlant

Controllers

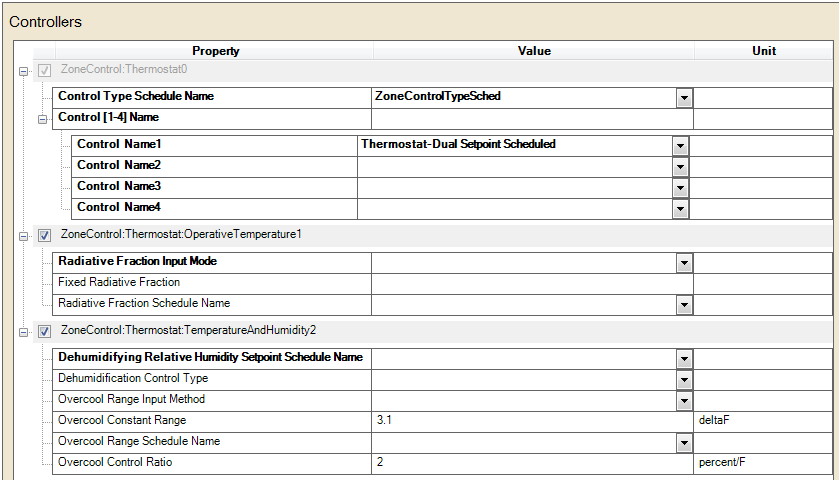

Dual Setpoint Controller

Workspace = Libraries>Controllers

Type = ZoneControlTemperature

Sub Type = Thermostat

Sim Params

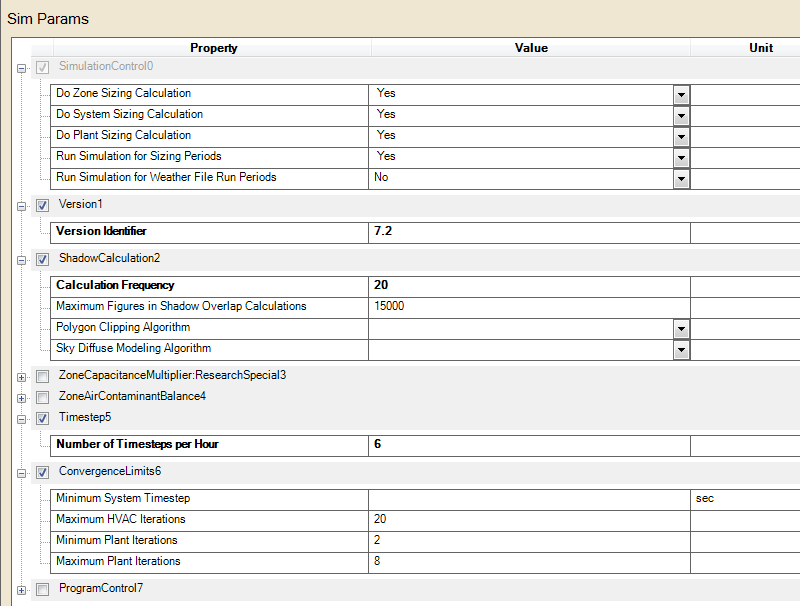

Sizing Run for Design Day Only

Workspace = Libraries>Sim Params

Type = Simulation Control

Sub Type = Default

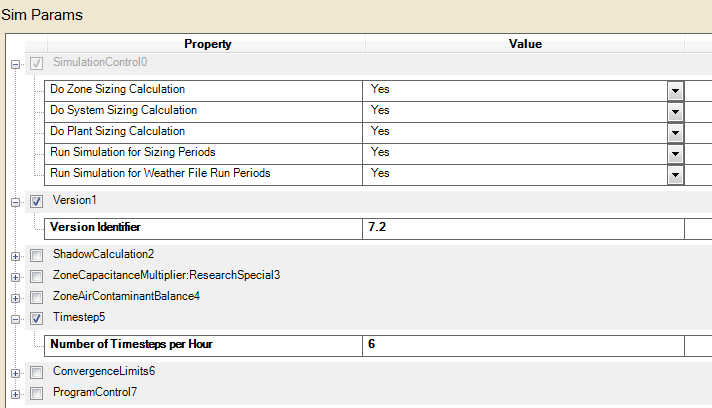

Sizing Runs Including Period

Workspace = Libraries>Sizing Params

Type = Simulation Control

Sub Type = Default

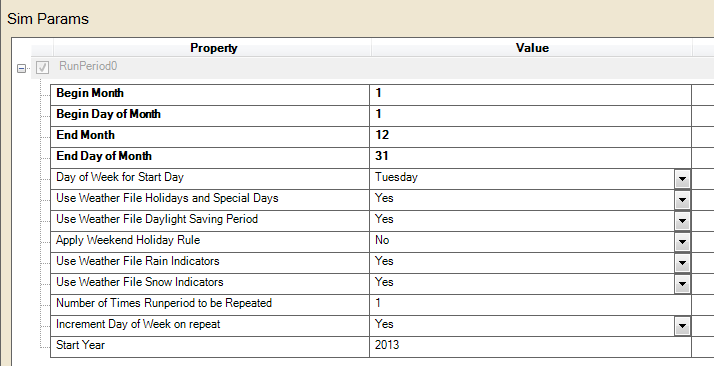

Annual Run for 2013

Workspace = Libraries>Sizing Params

Type = Simulation Control

Sub Type = Run Period

Control Schemes

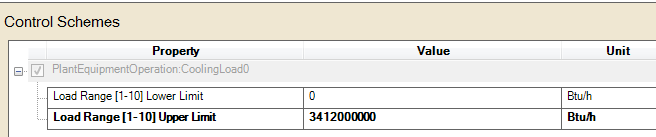

Scheme_CoolingLoad_UpTo_1GW

Workspace = Libraries>Control Schemes

Type = Control and Sequencing Scheme

Sub Type = Cooling Load

EnergyPlus Objet = PlantEquipmentOperation:CoolingLoad

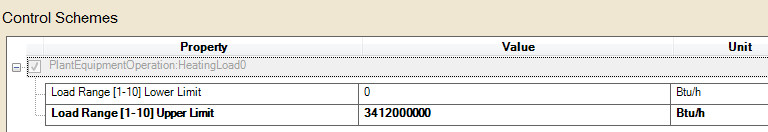

Scheme_HeatingLoad_UpTo_1GW

Workspace = Libraries>Control Schemes

Type = Control and Sequencing Scheme

Sub Type = Cooling Load

EnergyPlus Objet = PlantEquipmentOperation:HeatingLoad

Schedules

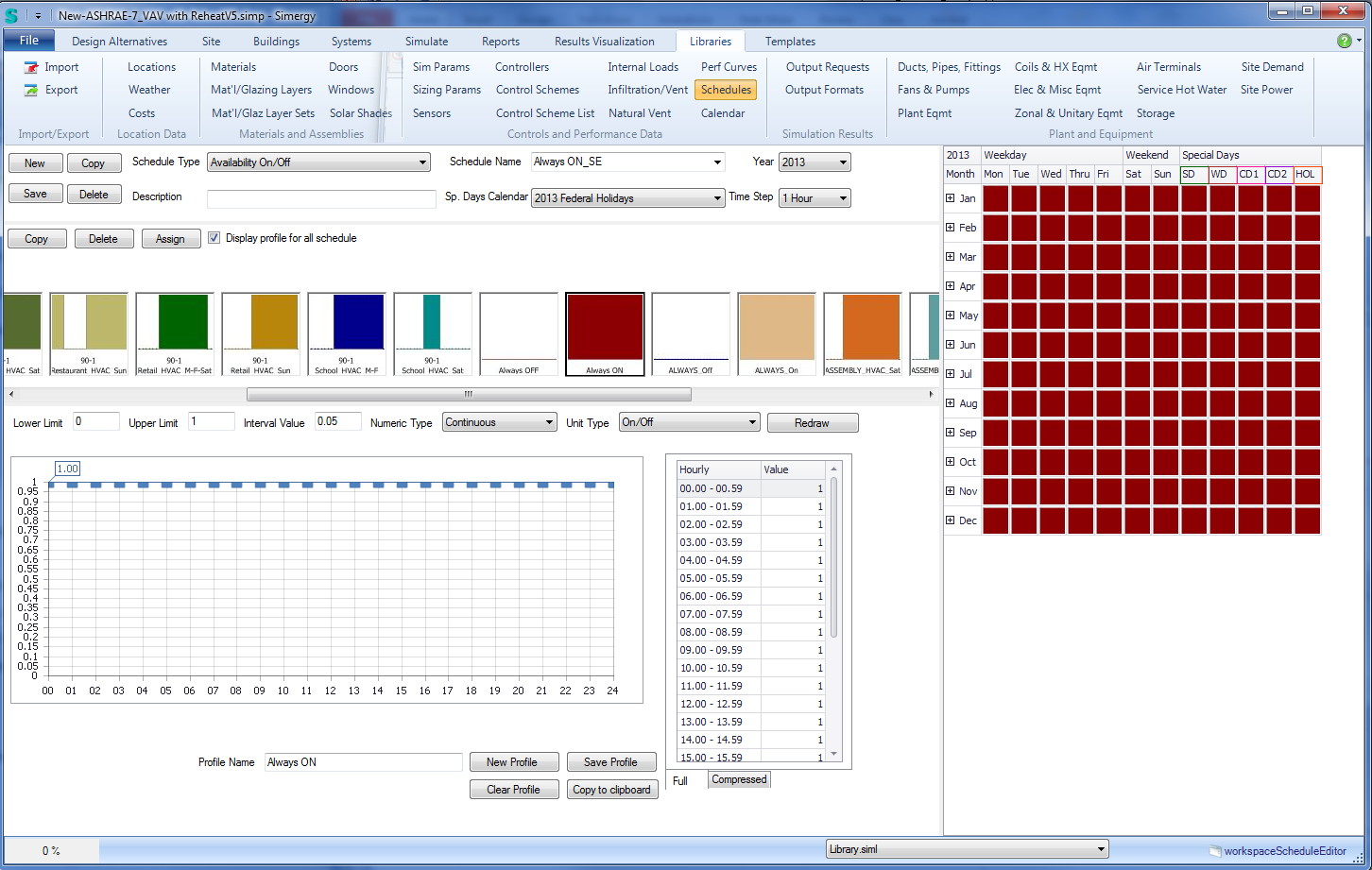

AlwaysON_SE

Schedule Type = Availability On/Off
