Libraries - Zonal Equipment

Location = Libraries/Plant and Equipment/Zonal&UnitaryEqmt

Type and Sub Type Mapping

The Type and Sub Type options that can be selected from the drop down lists in that area of the workspace, which filter the Source Library to display the variables the user can select to include, along with a value, in a Library Entry.

Note: The links within the table are to the EnergyPlus Input Output Reference and the explanations of the objects.

Type Options	Sub Type Options	EnergyPlus Objects (IO Reference links)
Unitary Zone Equipment	IdealLoadsAirSystem FourPipeFanCoil Air Conditioner Window PTAC PTHP HP_WtrToAir_CW HP_WtrToAit_MxW Dehumidifier DX EnergyRecoveryVentilator Unit Ventilator Unit Heater Evap Cooler Unit WaterSystemLoadProfile	ZoneHVAC:IdealLoadsAirSystem ZoneHVAC:FourPipeFanCoil ZoneHVAC:windowAirConditioner ZoneHVAC:PackagedTerminalAirConditioner ZoneHVAC:PackagedTerminalHeatPump ZoneHVAC:WaterToAirHeatPump ZoneHVAC:Dehumidifier ZoneHVAC:EnergyRecoveryVentilator ZoneHVAC:UnitVentilator ZoneHVAC:UnitHeater
Convective Cooling	Radiant_Water
Convective Heating	Electric Radiant_Electric Radiant_Steam Radiant_Water Water
Radiant Device	CeilingLowTempConstFlow CeilingLowTempVarFlow CeilingSlab_Ventilated FloorLowTempCOnstFlow FloorLowTempVarFlow FloorSlab_Ventilated HighTemp LowTEmp_Electric

Convective Cooling (Type)

Radiant_Water (Sub Type)

Property Group: ZoneHVAC:CoolingPanel:RadiantConvective:Water

Availability Schedule Name

Rated Inlet Water Temperature

Rated Inlet Space Temperature

Rated Water Mass Flow Rate

Cooling Design Capacity Method

Cooling Design Capacity A/S

Cooling Design Capacity per Floor Area

Fraction of Autosized Cooling Design Capacity

Maximum Chilled Water Flow Rate A/S

Control Type

Cooling Control Throttling Range

Cooling Control Temperature Schedule Name

COodensation Control Type

COodensation Control Dewpoint Offset

Fraction Radiant

Fraction of Radiant Energy Incident on People

Convective Heater (Type)

Radiant_Water (Sub Type)

ZoneHVAC:BAseboard:RadiantConvective:Water

Availability Schedule Name

Rated Average Water Temperature

Rated Water Mass Flow Rate

Heating Design Capacity Method

Heating Design Capacity A/S

Heating Design Capacity per Floor Area

Fraction of Autosized Heating Design Capacity

Maximum Water Flow Rate A/S

Convergence Tolerance

Fraction Reheat

Fraction of Radiant Energy Incident on People

Radiant Device (Type)

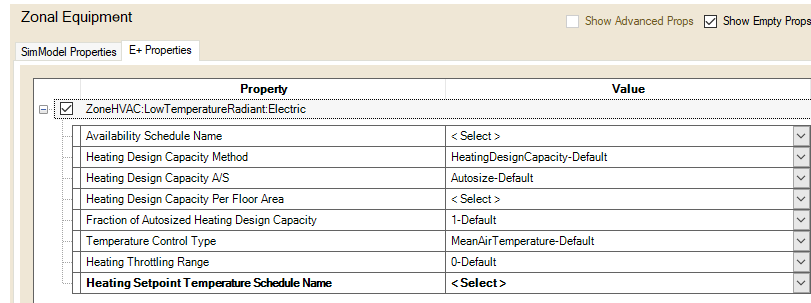

LowTemp_Electric (Sub Type)

Unitary Zone Equipment (Type)

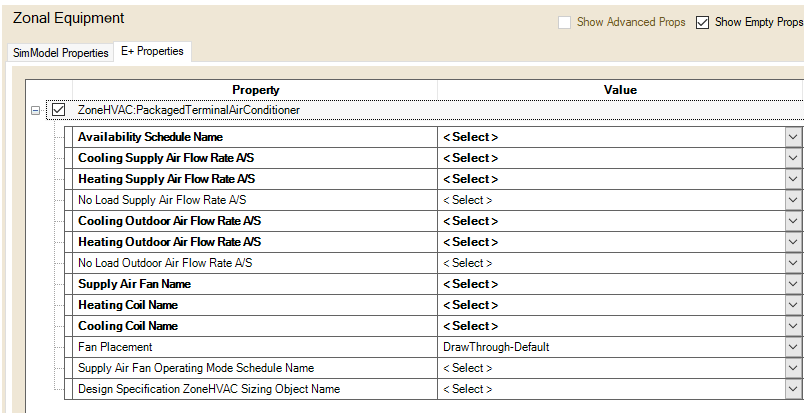

PTAC (Sub Type)

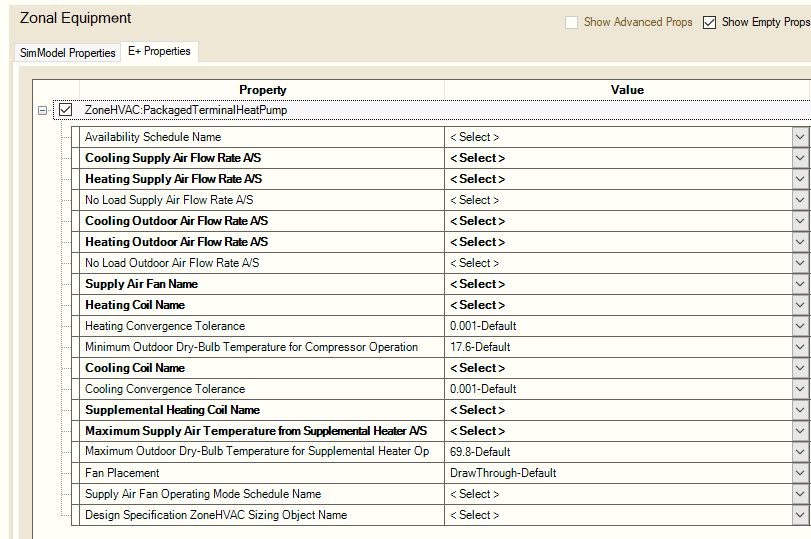

PTHP (Sub Type)
