Heat Exchanger Equipment

Type and Sub Type Mapping

The Type and Sub Type options that can be selected from the drop down lists in that area of the workspace, which filter the Source Library to display the variables the user can select to include, along with a value, in a Library Entry.

Note: The links within the table are to the EnergyPlus Input Output Reference and the explanations of the objects.



Type Options Sub Type Options EnergyPlus Objects (IO Reference links)

Heat Exchanger Air to Air

FlatPlate

SensibleAndLatent

DesiccantBalancedFlow

HeatExchanger:AirToAir:FlatPlate

HeatExchanger:AirToAir:SensibleAndLatent

HeatExchanger:Desiccant:BalancedFlow





Heat Exchanger Air to AIr (Type)



Flat Plate (Sub Type)



Availability Schedule name

Flow Arrangement Type

Economizer Lockout

Ratio of Supply to Secondary hA Values

Nominal Supply Air Flow Rate A/S

Nominal Supply Air Inlet Temperature

Nominal Supply Air Outlet Temperature

Nominal Secondary Air Flow Rate A/S

Nominal Secondary Air Inlet Temperature

Nominal electric Power



DesiccantBalancedFlow (Sub Type)



Availability Schedule Name

Heat Exchanger Performance Name

Economizer Lockout

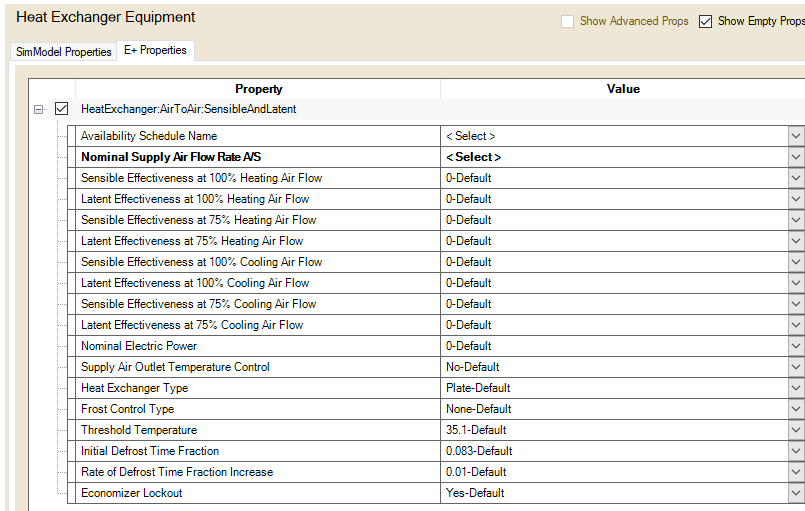

Sensible and Latent (Sub Type)
